產品：短圓柱連接形式
產品特性:
■特點：
☆短圓柱連接形式。
☆氣缸與卡盤連為一體，機床前后可各配一臺卡盤。
☆通孔大，適用于焊接設備。
☆斷開氣源，方可工作；內含逆止閥，夾緊可靠。
☆具有二爪、三爪、四爪等形式。
■Specificity:
☆Short cylinders center mounting.
☆Pneumatic cylinders and chucks are joined into an integral and a set of chuck can be equipped in front or rear of the machine.
☆with large thru-hole and suitable for pipe welding facility.
☆The chucks can just work when switching off pneumatic source and be equipped with inverted valve inside and with high clamping reliability.
☆We can supply 2-jaw,3-jaw and 4jaw chucks as requested.
產品詳情

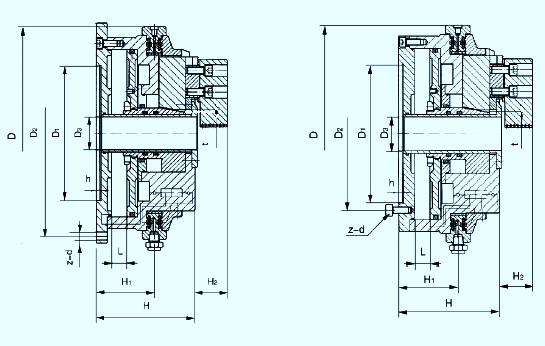

■尺寸、性能參數 Dimension Parameters
|
規格
Size
|
D
|
D1
|
D2
|
D3
|
h
|
H
|
H1
|
H2
|
L
|
t
|
z-d
|
最大使用
壓力MPa
Max pressure
|
|
200
|
-
|
165
|
180
|
52
|
6.5
|
134
|
-
|
-
|
25
|
9
|
6-M10
|
0.8
|
|
250
|
368
|
225
|
(344)
250
|
55
|
8
|
165
|
96.5
|
56
|
25
|
8.8
|
(6-13)6-M12
|
1.0
|
|
315
|
406
|
225
|
(350)
250
|
90
|
8
|
187
|
113
|
68
|
30
|
16
|
(6-13)6-M12
|
1.0
|
|
400
|
-
|
340
|
368
|
140
|
8
|
199
|
-
|
-
|
34
|
12
|
6-M16
|
1.0
|
|
500
|
-
|
440
|
465
|
240
|
8
|
222
|
-
|
-
|
43
|
15
|
6-M16
|
1.0
|
產品備注
注：表中（）內尺寸適用于左邊結構圖。
Note:The () values in the table are suitable for the left figure.
|
