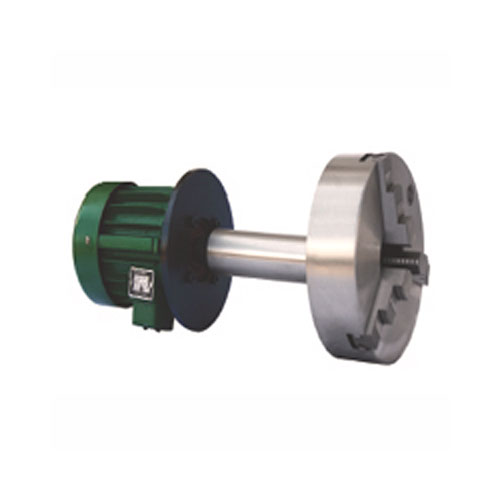

產品：KD11
產品特性:
■特點：
☆短圓柱連接形式。
☆動力源為驅動電機，自動定心，自動夾緊。
☆具有夾緊力可調功能。
☆用于盤類、棒類零件的加工。
☆適用于數控車床、自動化車床及普通車床。
■Specificity:
☆Short cylindrical center mounting.
☆The power source is driving motors , and the chucks can center and clamp automatically.
☆The clamping force can be adjusted.
☆Suitable for machining plate and rod shaped components.
☆Suitable for machining plate and rod shaped components, NC lathes, automatic and common lathes.
產品詳情

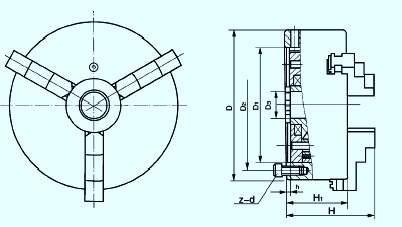

■尺寸、性能參數 Dimension Characteristic Parameters
|
規格D
Size
|
D1
|
D2
|
D3
|
H
|
H1
|
h
|
z-d
|
極限
轉速
Max speed
|
最大
夾緊力
Max gripping force
|
電機
型號
Motor type
|
電機
功率
Power
|
凈重Kg
Net WT
|
|
160
|
130
|
142
|
24
|
100
|
70
|
5
|
3-M8
|
2500
|
35
|
AE7124
|
0.37Kw
|
10
|
|
200
|
165
|
180
|
35
|
118
|
82
|
5
|
3-M10
|
2000
|
42
|
AE7134
|
0.55Kw
|
20
|
|
250
|
206
|
226
|
45
|
140
|
88
|
5
|
3-M12
|
1500
|
50
|
AE7134
|
0.55Kw
|
38
|
|
315
|
260
|
285
|
50
|
166
|
116
|
5
|
3-M16
|
1000
|
72
|
AE8024
|
0.75Kw
|
65
|

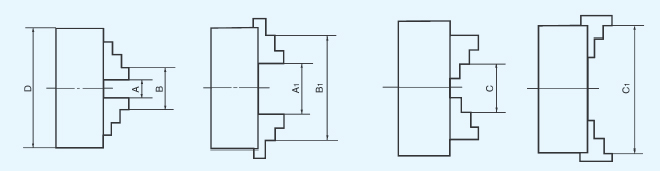

 ■夾緊范圍 Claming Range
|
規格D
Size
|
正爪 Internal Jaw
|
反爪 External Jaw
|
|
夾緊范圍 Clamping range
|
撐緊范圍 Jamming range
|
夾緊范圍 Clamping range
|
|
A-A1
|
B-B1
|
C-C1
|
|
160
|
3-55
|
50-160
|
55-140
|
|
200
|
4-85
|
65-200
|
65-200
|
|
250
|
6-110
|
80-250
|
90-250
|
|
315
|
10-140
|
96-315
|
100-315
|
|
