產品：冷卻液回收裝置
產品特性:

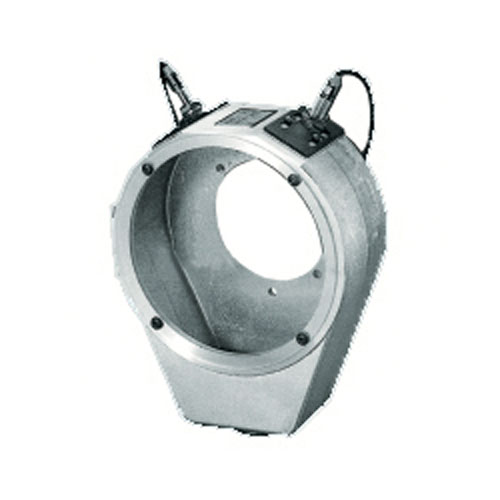

■冷卻液回收裝置（選購件） Coolant Collector (Additional Parts)
該裝置可與P25、P23系列通孔回轉油缸配套使用，安裝在油缸尾部，以收集切削液，并可附設行程開關，行程開關的位置應根據活塞后部行程開關碰頭位置及行程需要而適當調整。
This component is used with P25、P23 cylinder, fitted at the end of the cylinder to collect cutting-water. A stroke control device may be equipped and its location should be adjusted according to stroke and the dog placed at the end of the piston.
產品詳情

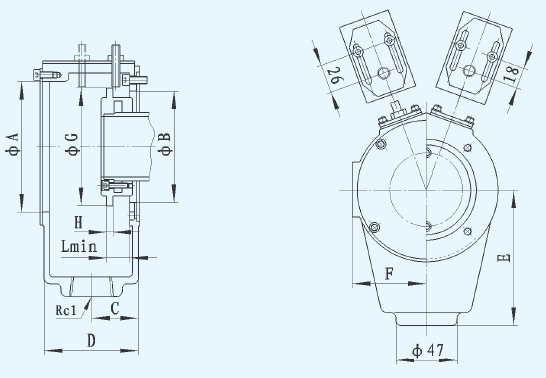

■尺寸、性能參數(shù) Dimension 、Characteristic Parameters
|
規(guī)格
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
Lmin
|
適合油缸
|
|
P23100-Ⅱ
|
100
|
75
|
41
|
80
|
115
|
63
|
90
|
5
|
23
|
P25105 P23100
|
|
P25125-Ⅱ P23125-Ⅱ
|
100
|
86
|
41
|
80
|
115
|
63
|
90
|
5
|
23
|
P25125 P23125
|
|
P25155-Ⅱ P23160-Ⅱ
|
114
|
96
|
41
|
80
|
130
|
71
|
99
|
5
|
23
|
P25155 P23160
|
|
P25180-Ⅱ P23200-Ⅱ
|
146
|
122
|
42.5
|
85
|
150
|
88
|
131
|
5
|
23
|
P25180 P23200
|
|
P25205-Ⅱ P23250-Ⅱ
|
158
|
140
|
44
|
88
|
155
|
97
|
147
|
6
|
22.5
|
P25205 P23250
|
產品備注
※油缸配帶冷卻液回收裝置時，產品型號后加Ⅱ，如：P23160×52-Ⅱ，P25155×52B變?yōu)镻25155×52B-Ⅱ。
※When the hydraulic cylinders matching the coolant device, add Ⅱ behind model , e.g. P23160×52 should be P23160×52-Ⅱ，P25155×52B should be P25155×52B-Ⅱ.
|
