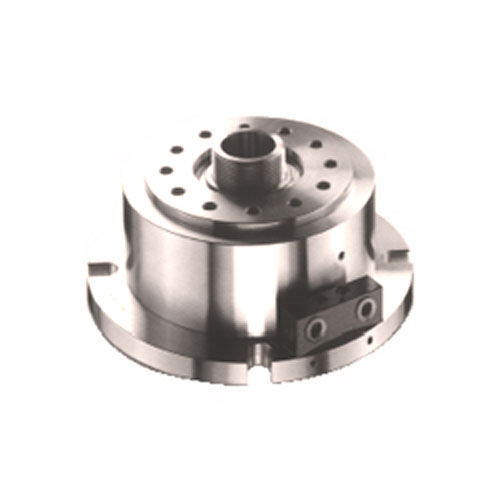

產品：PL
產品特性:
■特點：
☆適用于鉆床、銑床和加工中心等機床。
☆可同時安裝多臺，實現多工步加工，提高加工效率。
☆與動力卡盤配套使用。
■Specificity:
☆The cylinders are suitable for drilling machines, milling machines and machining centers, etc.
☆Several vertial hydraulic cylinders can be mounted at the same time, so as to fulfil multistep process and increase the machining efficiency.
☆Matched with the power chucks.
產品詳情

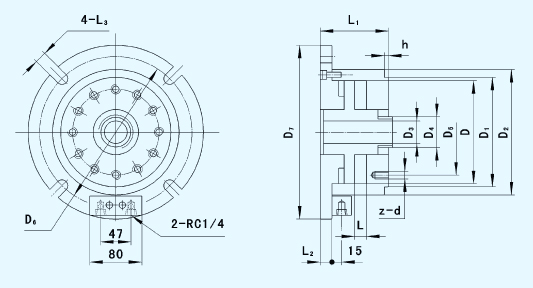

■尺寸參數 Dimension Parameters
|
規格
Size
|
D
|
D1
|
D2
|
D3
|
D4
|
D5
|
D6
|
D7
|
h
|
L1
|
L2
|
L3
|
z-d
|
|
PL125
|
125
|
140
|
160
|
28
|
M36×1.5
|
104.8
|
200
|
230
|
5
|
102
|
18
|
18
|
12-M10
|
|
PL160
|
160
|
170
|
195
|
41
|
M48×1.5
|
133.4
|
235
|
270
|
6
|
105
|
18
|
18
|
12-M12
|
|
PL200
|
200
|
220
|
240
|
52
|
M60×2.0
|
171.4
|
280
|
315
|
6
|
115
|
20
|
18
|
12-M16
|
|
PL250
|
250
|
300
|
290
|
100
|
M110×2.0
|
235
|
330
|
370
|
20
|
130
|
20
|
18
|
12-M20
|
■性能參數 Characteristic Parameters
|
規格
Size
|
活塞有效面積㎝2
Piston effective area
|
活塞行程Lmax
Piston stroke
|
最大使用壓力Mpa
Max. acting pressure
|
極限轉速r/min
Max. speed
|
最大推拉力kN
Max. draw pull
|
推薦動力卡盤
Rec. power chuck
|
凈重Kg
Net WT
|
|
PL125
|
103
|
20
|
125
|
2.5
|
23
|
K54160、K55160
|
15
|
|
PL160
|
162
|
22
|
160
|
2.5
|
36
|
K54200、K55200
|
22
|
|
PL200
|
261
|
26
|
200
|
2.5
|
58
|
K54250、K55250
|
27
|
|
PL250
|
348
|
27
|
250
|
2.5
|
78
|
K54315、K55315
|
53
|
產品備注
注：可根據用戶要求，設計與K51、K54等系列動力卡盤配套的立式固定油缸。
Note:According to the users demand to design vertical stationary hydraulic cylinders matching with K51、K54 etc series power chucks.
|
