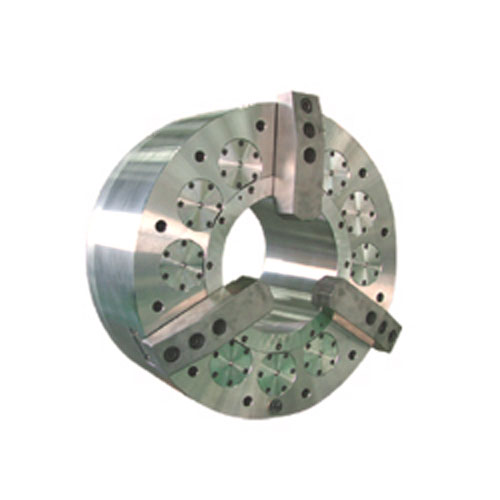

產品：K59D
產品特性:
■特點：
☆短圓柱連接形式。
☆前置式卡盤氣動松開，碟簧夾緊，卡爪大行程。
☆機床前后可各配一臺卡盤。
☆主要適用于管子車床。
☆斷開氣源方可工作。
■Specificity:
☆Short-cylindrical center mounting.
☆The chucks mounted in front and loosing by the air actuated ,the spring clamp,large stroke jaw.
☆A(yù) set of chuck can be equipped in front or rear of the machine.
☆Suitable fr the pipe lathes.
☆The chucks just work when switching off the air source.
產品詳情

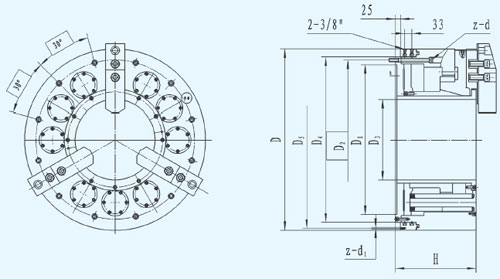

■尺寸Dimension Parameters
|
規格D
Size
|
D1
|
D2
|
D3
|
D4
|
D5
|
H
|
h
|
z-d
|
z-d1
|
|
850
|
700
|
745
|
375
|
775
|
830
|
380
|
8
|
12-M16
|
6-M8
|
■性能參數Characteristic Parameters
|
規格D
Size
|
楔心套行程L
Lmax Piston stroke
|
單爪行程t Jaw stroke
|
最大夾緊力kN
Max. gripping force
|
極限轉速r/min
Max. speed
|
夾緊范圍
（標準爪）
Clamping range
|
凈重kg
Net WT.
|
|
850
|
60
|
15+12
|
170
|
700
|
150-350
|
1000
|
|
