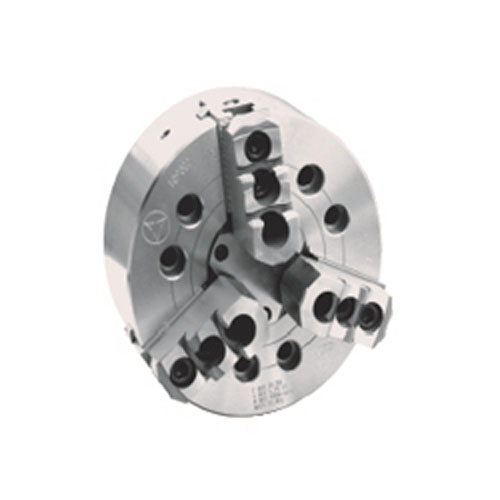

產品：K54/A
產品特性:
■特點：
☆與主軸直接連接，剛性好，精度高。
☆防塵效果好，使用壽命長。
☆適用于盤類零件的精加工，也可用于毛坯件加工。
■Specificity:
☆This series chucks can be directly connected to the spindle noses of the machne tools, with nice rigidity and high accuracy.
☆The chucks are effectively dust-proof and have a long-term durability.
☆The chucks are suitable for precision machining of plate-shaped workpieces as well as rough surface ones.
產品詳情

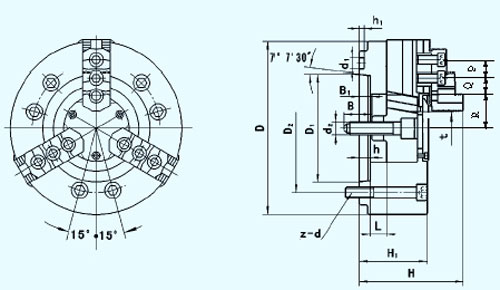

■尺寸參數 Dimension Parameters
|
規格D
Size
|
主軸頭號
Short
Taper
No.
|
D1
|
D2
|
H1
|
H
|
h
|
h1
|
B
|
P
|
Qmax
|
Qmin
|
Rmax
|
Rmin
|
B1max
|
B1min
|
d1
|
d2
|
z-d
|
|
160
|
5
|
82.563
|
104.8
|
76
|
122
|
15
|
6.5
|
30
|
20
|
21.5
|
10.5
|
32
|
29.5
|
6
|
-9
|
16.3
|
M16
|
6-M10
|
|
200
|
6
|
106.375
|
133.4
|
90
|
142
|
16
|
6.5
|
35
|
24
|
28
|
12.5
|
40.5
|
37
|
6
|
-14
|
19.5
|
M20
|
6-M12
|
|
250
|
8
|
139.719
|
171.4
|
102
|
157
|
18
|
8
|
48
|
28
|
44.5
|
14.5
|
45.9
|
41.5
|
13
|
-12
|
24.2
|
M24
|
6-M16
|
|
315
|
11
|
196.869
|
235
|
125
|
192
|
20
|
10
|
48
|
32
|
53
|
26
|
62.7
|
57.5
|
20
|
-10
|
29.4
|
M24
|
6-M20
|

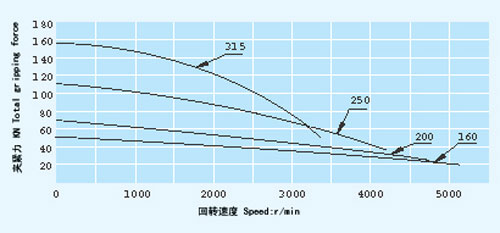

■性能參數 Characteristic Parameters
|
規格D
Size
|
楔心套行程Lmax
Axial wedge stroke
|
爪行程（直徑）
Jaw stroke(Dia.)
|
許用推拉力kN
Max. draw pull
|
最大夾緊力kN
Max. gripping force
|
極限轉速r/min
Max. speed
|
夾緊范圍
Clpmping range
|
撐緊范圍
Jamming range
|
推薦油缸
Rec.
cylinder
|
凈重Kg
Net WT
|
|
160
|
15
|
5
|
18
|
52
|
5200
|
12-140(160)
|
60(30)-140(160)
|
P22
100
|
11
|
|
200
|
20
|
7
|
25
|
75
|
4700
|
16-180(200)
|
75(36)-180(200)
|
P22
125
|
22
|
|
250
|
25
|
8.8
|
37
|
108
|
4000
|
25-230(250)
|
96(45)-230(250)
|
P22
125
|
39
|
|
315
|
30
|
10.4
|
53
|
156
|
3300
|
40-280(315)
|
110(60)-280(315)
|
P22
160
|
59
|
產品備注
※表中()數值適用于軟卡爪卡盤。根據用戶需要，可提供符合ISO標準的D型、C型短錐連接。
※The () on the above table is for soft jaw chucks. The short taper mounting type D and C are conform to the ISO standard can be provided according to the customer.
|
