產品：KL51S
產品特性:
■特點：
☆短圓柱連接形式。
☆密封性能好，定心精度高，調整方便，夾緊可靠，運轉平穩。
☆用于盤類零件的加工，尤其適合汽車輪轂及薄形零件的加工。
☆是立式車床配套的專用卡盤，也可用于其它機床。
☆可為用戶提供不同需求的軟卡爪。
■Specificity:
☆Short cylindrical center mounting.
☆With high sealing reliability, high center accuracy, easy adjustment , clamping reliability and rotating steadily.
☆Suitable for machining the plate-shaped components, especially for the automobile wheel hubs and the thin workpiece.
☆The chucks are special equipments for the vertical lathes and also can be used for the other machine tools.
☆The different soft jaws can be provided as requested.
產品詳情

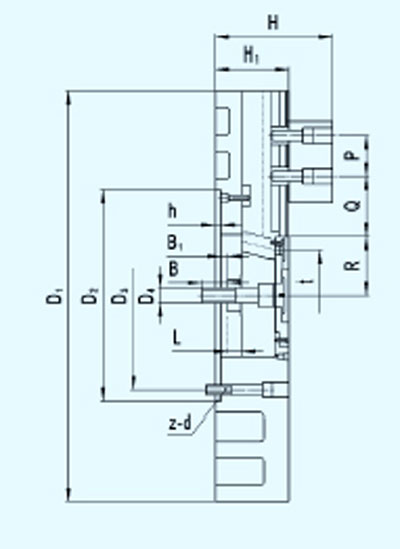

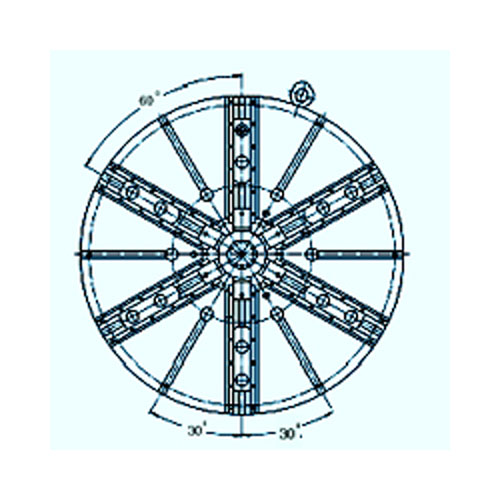

■尺寸參數 Dimension Parameters
|
規格D
Size
|
D1
|
D2
|
D3
|
D4
|
H1
|
H
|
h
|
P
|
Rmax
|
Rmin
|
Qmax
|
Qmin
|
B
|
B1max
|
B1min
|
z-d
|
|
630
|
630
|
380
|
330.2
|
M30
|
150
|
234
|
6
|
38
|
99
|
89
|
166
|
25
|
60
|
16
|
-22
|
6-M24
|
|
800
|
800
|
380
|
330.2
|
M30
|
150
|
234
|
6
|
32
|
120
|
110
|
242
|
30
|
60
|
16
|
-22
|
6-M24
|
|
1000
|
1005
|
520
|
463.6
|
M36
|
180
|
282
|
8
|
100
|
145.5
|
130.5
|
231
|
43
|
65
|
22
|
-35
|
6-M24
|
|
1250
|
1250
|
520
|
463.6
|
M36
|
180
|
282
|
8
|
100
|
145.5
|
130.5
|
356
|
43
|
65
|
22
|
-35
|
6-M24
|
■性能參數 Characteristic Parameters
|
規格
Size
|
楔心套行程Lmax
Axial wedge stroke
|
爪行程（直徑）
Jaw stroke(Dia.)
|
許用推拉力kN
Max. draw pull
|
最大夾緊力kN
Max. gripping force
|
極限轉速r/min
Max. speed
|
夾緊范圍
Clpmping range
|
撐緊范圍
Jamming range
|
|
630
|
38
|
20
|
100
|
240
|
500
|
80-600
|
80-760
|
|
800
|
38
|
20
|
100
|
240
|
500
|
80-760
|
180-800
|
|
1000
|
57
|
30
|
180
|
400
|
400
|
220-950
|
270-1000
|
|
1250
|
57
|
30
|
180
|
400
|
350
|
220-1200
|
270-1280
|
產品備注
■卡爪結構參數 Jaws structure Parameters
|
規格D
Size
|
L
|
B
|
b
|
H
|
e
|
s
|
t
|
t1
|
z-d
|
|
630
|
160
|
45
|
17
|
75
|
38
|
3/32″×90°
|
6
|
5.5
|
2-13
|
|
800
|
160
|
50
|
21
|
75
|
32
|
3/32″×90°
|
4.5
|
4
|
2-17
|
|
1000
|
200
|
55
|
22
|
110
|
100
|
-
|
-
|
9
|
2-17
|
|
1250
|
200
|
60
|
26
|
110
|
100
|
-
|
-
|
9
|
2-22
|
|
